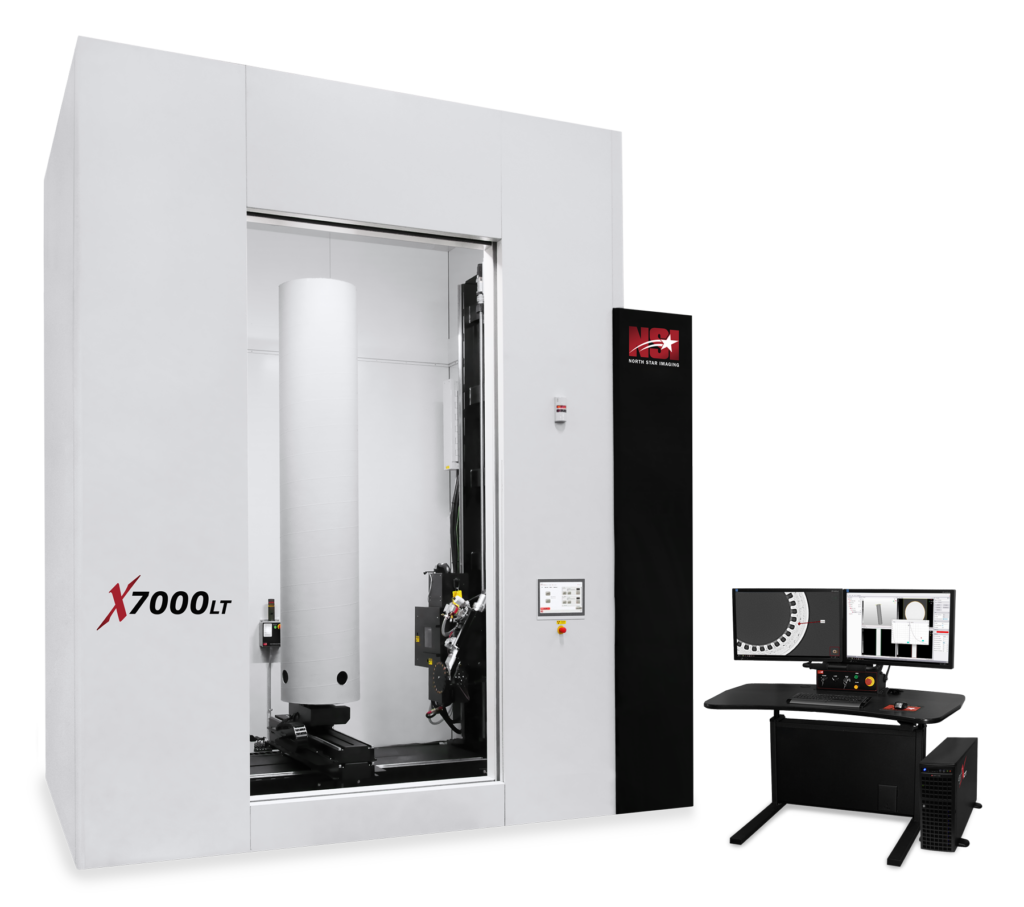

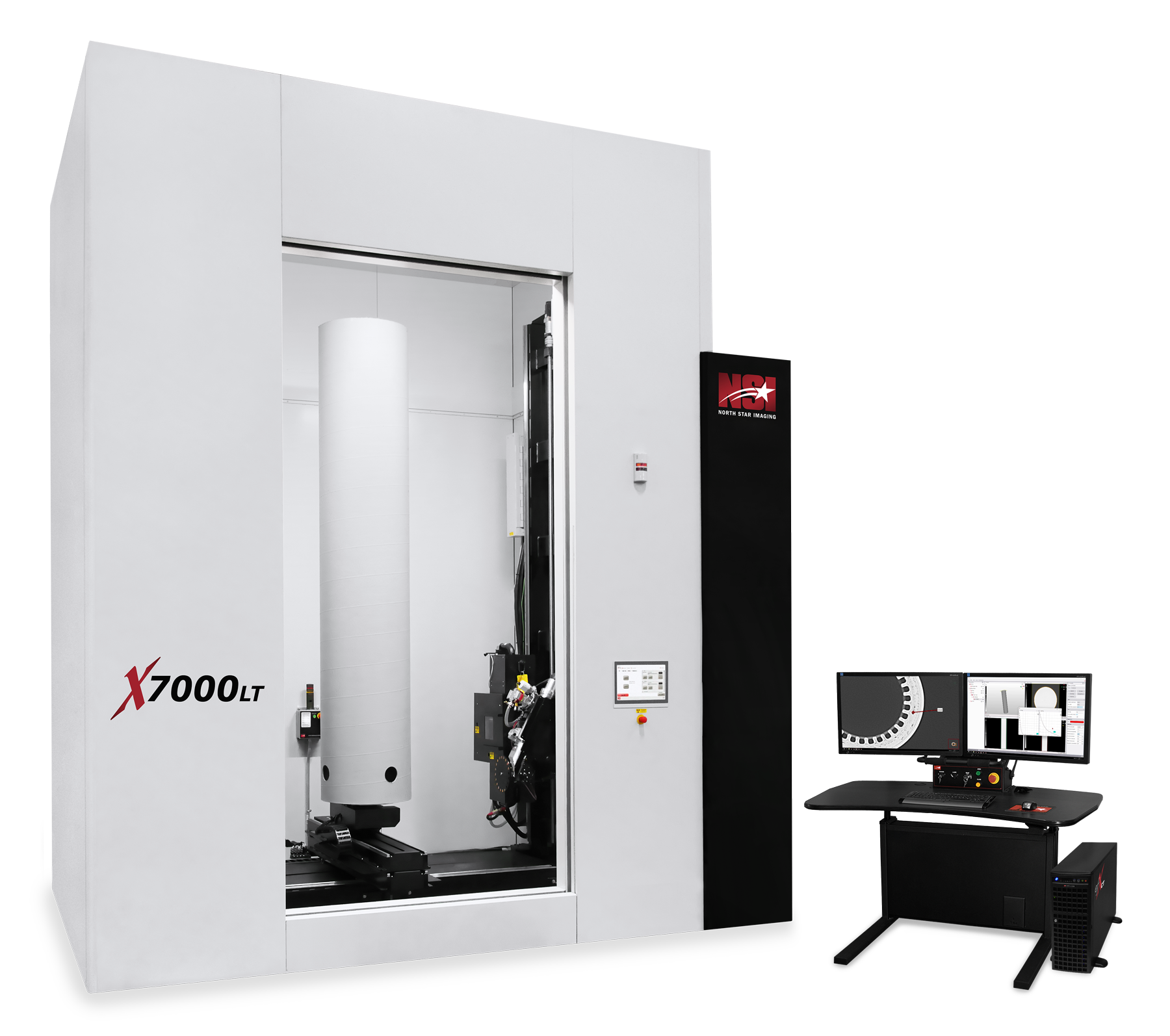

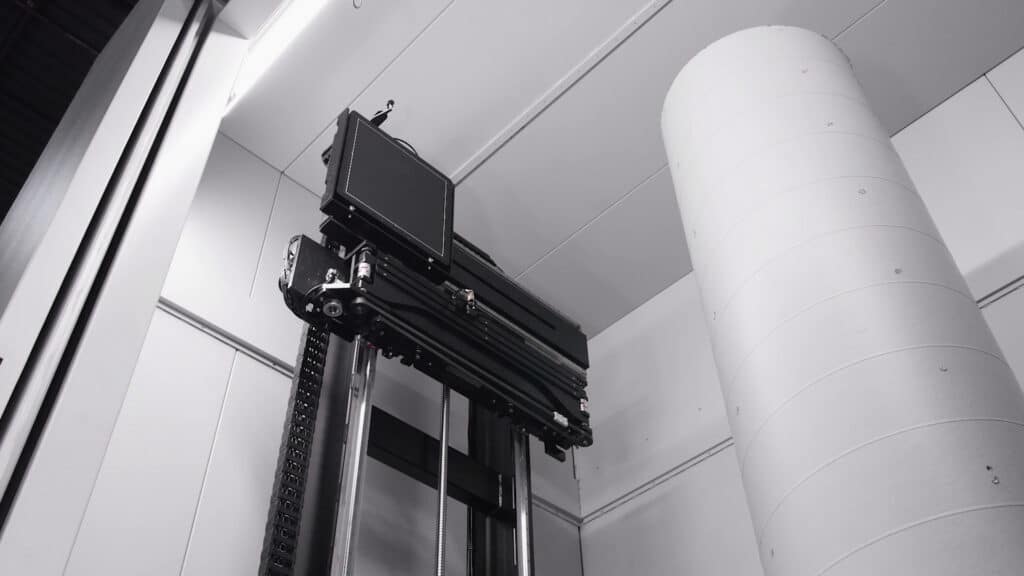

X7000LT Industrial CT Scanning System
Specifications
- DICONDE compliant
- Integrated Process Controls
- Advanced Imaging Modalities
- Integrated efX Software Suite
- Integrated Motion Control
- Reconstruct 3D models quickly using our 5-step guided wizard
- Comprehensive acquisition, processing and archival program with user-friendly interface
- High performance image processing and measurement functions
- DICONDE compliant
- Non-proprietary multiple image format
- Computed Tomography acquisition module
- 3D Computed Tomography reconstruction and visualization
- Optional 4D Computed Tomography
- Available with VorteX, SubpiX, MosaiX, and Ring Reduction
- Voltage Range: 10 kV – 450 kV
- Minimum Focal Spot Size: ~2 μm
- X-ray Tube Types:
- Microfocus – Reflection
- Microfocus – Transmission
- Microfocus – Dual Head
- Minifocus
- Optional dual tube configuration
- Digital X-ray Detector Types: Flat Panel (DDA), Linear Diode Array
- Grade Options: Premium, Superior (ASTM)
- Pixel Pitch:
- DDA: 100-200 μm
- LDA: 200-400 μm
- Maximum Detector Size:
- DDA: 17 in x 17 in [43.2 cm x 43.2 cm]
- LDA: 36.3 x 0.03 in [92.2 x 0.08 cm]
- Optional dual detector configuration
- Maximum Sample Weight: 500 lb [227 kg]

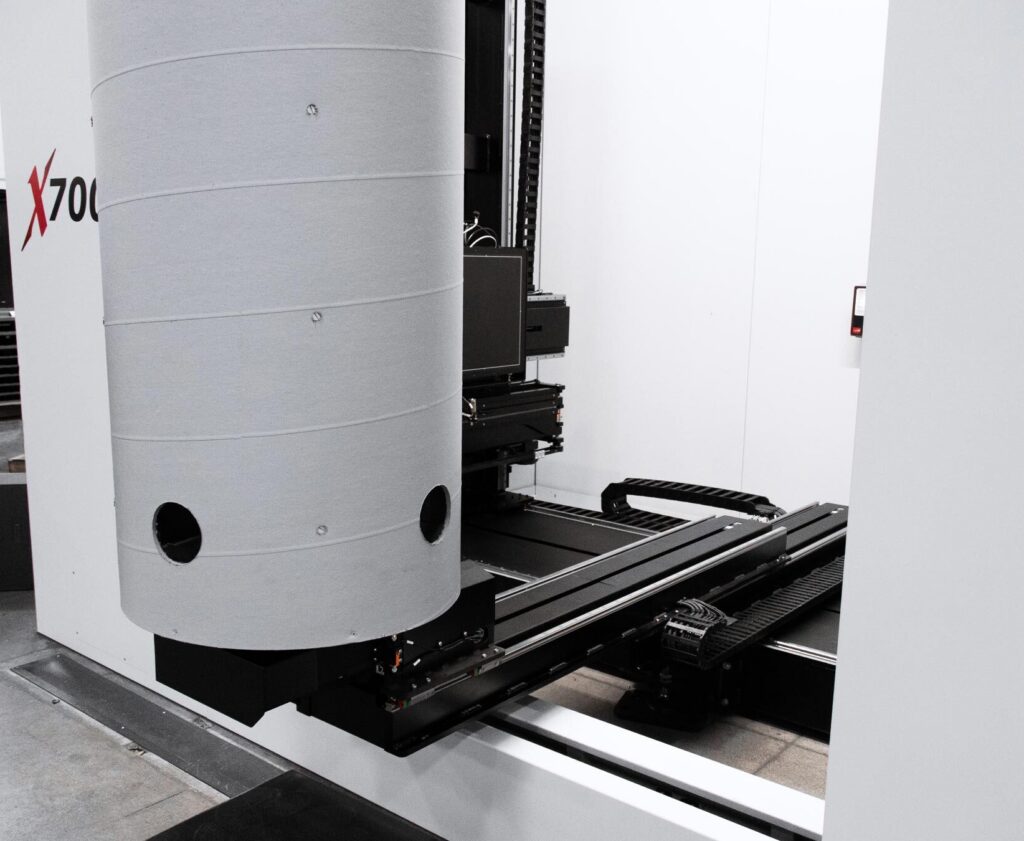

- Part Travel:
- Horizontal: 48 in [123 cm]
- Vertical: 108 in [274 cm]
- Source to Detector: 68 in [172 cm]
- Tilt: +20°/-20°
- Rotation: 360° Continuous
- Nominal Part Envelope: 60 x 108 in [152 x 274 cm]
- Maximum Focal Distance: 90 in [228 cm]
- Part Manipulation Control:
- All drives variable speed joystick controlled
- Each axis is independently controlled
- Control-X: Programmable CNC controlled automated scanning with automatic image processing and archiving capabilities
- External Dimensions:
- Width: 177 in [450 cm]
- Depth: 112 in [285 cm]
- Height: 185 in [470 cm]
- Weight: 66,000 lb [29,938 kg]
- Cabinet Features: Cable access port with cover, interior lighting, powered sliding access door(s), leaded glass viewing window, safety light curtains
- Steel/lead/steel construction
- Meets or exceeds 21 CFR 1020.40 and EN 61010-2-091 2012
- Touch screen operation
- Vibration isolation system
- System includes one ergonomic desk and chair
X7000LT Industrial CT Scanning System
Applications
- Failure Analysis
- Assembly Verification
- Reverse Engineering
- Density Analysis
- Finite Element Analysis
- Void and Porosity Analysis
- 2D and 3D Metrology
- Internal and External Measurements
- Product Quality Compliance
- Research and Development (R&D)
- 3D CAD comparisons
- Weld and Braze Quality Analysis
- In Situ Monitoring
- Additive Manufacturing System Qualification
X7000LT Industrial CT Scanning System
Downloads
X7000LT Industrial CT Scanning System
Robust & Scalable

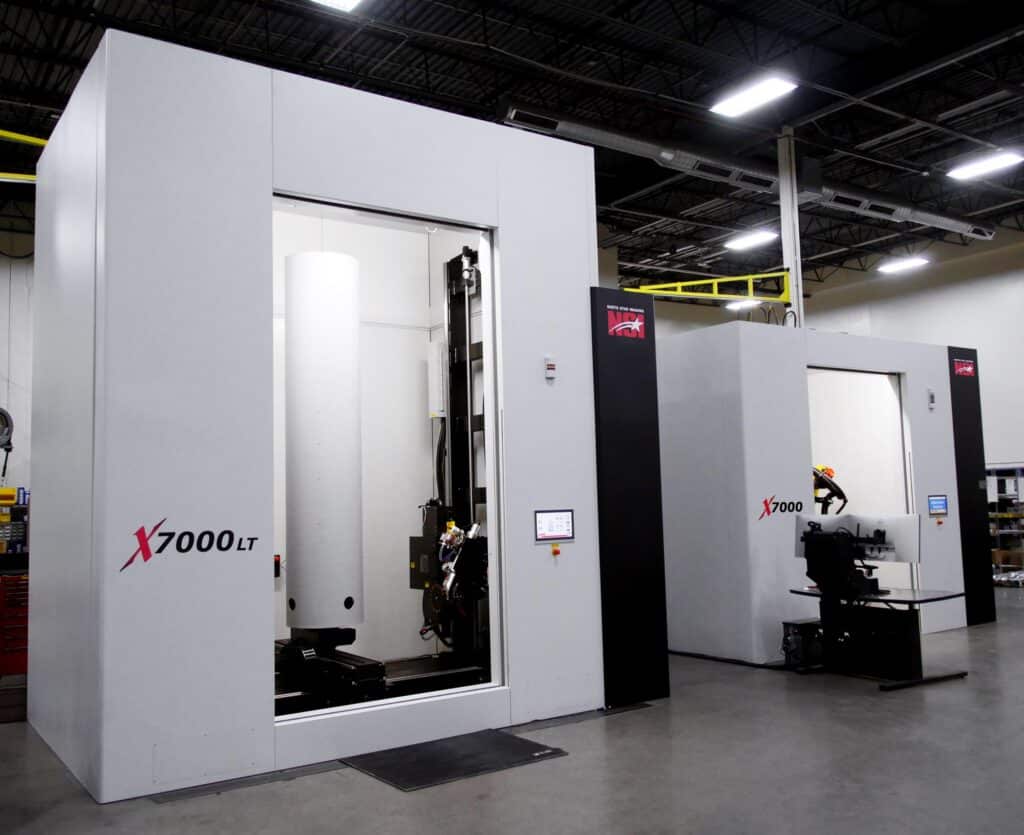

The X7000LT has the tallest scanning envelope and longest focal distance of our large-format systems, purpose-built for elongated parts like missiles, rocket motors, rotor blades, and tall composite airframe structures. This system allows you to scan tall or oversized parts while maintaining the precision to inspect smaller components.Have a question? Want a demo?
